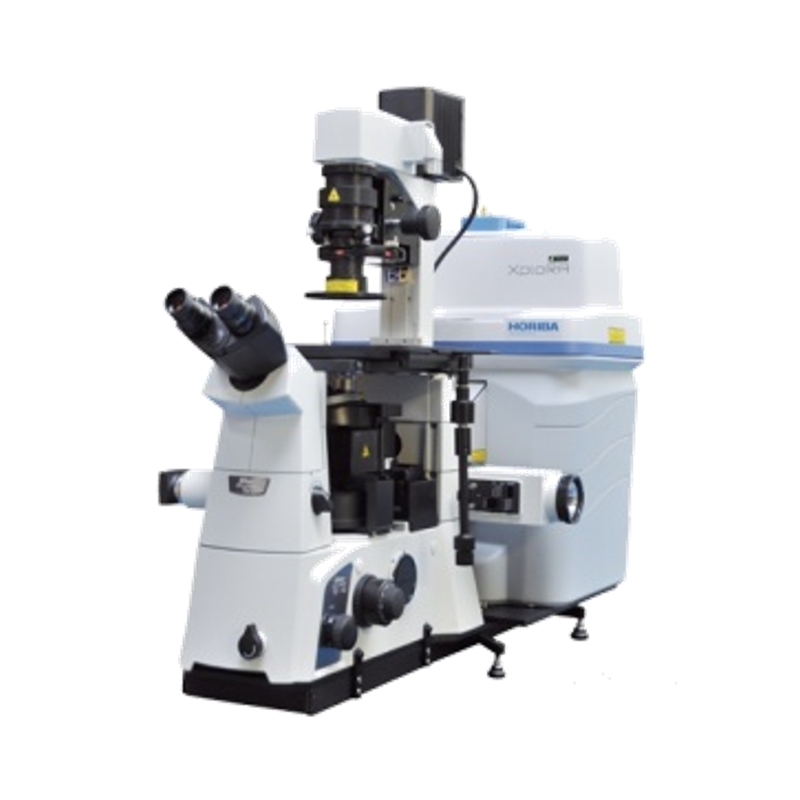

Raman Microscope and Spectrometer RAMAN

(1) Material structure and composition analysis
Crystal quality assessment: Detect lattice stress (strained silicon technology) through Raman peak shift (such as Si’s 520 cm⁻¹ peak); distinguish between single crystal, polycrystalline and amorphous silicon (such as a-Si vs. c-Si).
Thin film composition: Analyze the Ge content of SiGe alloy (the peak position is linearly related to the Ge concentration), and detect the chemical bond state of dielectric layers such as silicon nitride (Si₃N₄) and silicon oxide (SiO₂).

(2) Process monitoring
Annealing effect evaluation: Monitor the recrystallization process after ion implantation (Raman peak change of amorphous silicon → crystalline silicon).
Epitaxial growth quality control: Detect the epitaxial layer thickness and defect density of wide bandgap semiconductors such as SiC and GaN.

(3) Failure analysis and defect detection
Local hot spot analysis: Locate the mechanical stress concentration area in the chip through Raman peak shift (such as cracks caused by package warping). Contaminant identification: Identification of organic residues (photoresist) or metal particles on the wafer surface (through SERS enhancement)

Expand more Read Less

Chat Now

Application Areas

Each piece of equipment serves a purpose in advancing the study of MEMS devices, LiTaO3, PZT（PbZrTiO₃）, photodiodes, metal oxides, metals and other semiconductors.
The materials and technologies listed in this presentation are carefully selected to support the development and production of cutting-edge sensors. Each component is tailored for the fabrication of the sensors previously outlined, including metal oxide sensors, optical detectors, gas detection technologies, and piezoelectric/pyroelectric devices. The selected technologies ensure compatibility with 6-inch wafers to meet the requirements of industrial-scale manufacturing processes.
Every step of the process, from material preparation to device assembly, has been optimized to support high-volume production while maintaining the flexibility to accommodate a variety of sensor types, including MEMS devices, UV/IR sensors, and biosensors. The focus remains on ensuring the integration of the most reliable and efficient technologies to produce high-quality sensors for diverse applications.
