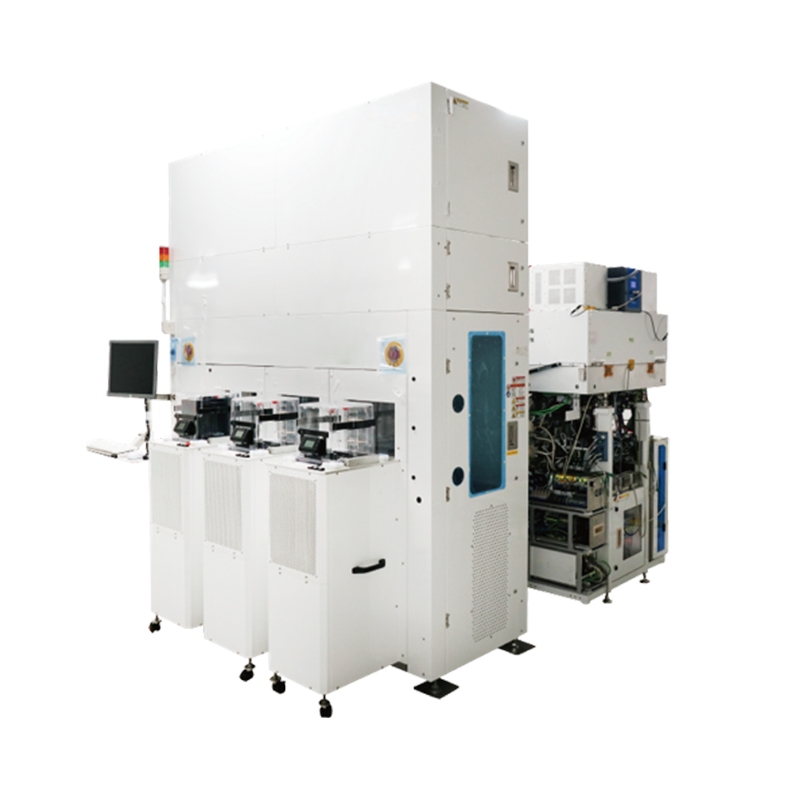

Multi-material thin film deposition system
Core features:
โโ1. Advanced thin film deposition capability
High-precision deposition system designed for 6/8-inch wafers
Supports deposition of various dielectric thin films:
Silicon oxide (SiOโ) Silicon nitride (SiโNโ) Silicon oxynitride (SiON) Phosphorus silicon glass (PSG) Boron phosphorus silicon glass (BPSG)
โโ2. Multi-functional platform architecture
Modular multi-reactor design to support process expansion
Precise temperature control (ยฑ1ยฐC) and uniform airflow distribution
Configurable PECVD, LPCVD and other deposition modes
โโ3. Wide material compatibility
Adaptable to a variety of substrate materials:
Silicon-based materials (Si)
Silicon carbide (SiC)
GaAs and other compound semiconductors
โโ4. Multi-field applications
Integrated circuit manufacturing
Power semiconductor devices
Compound semiconductor devices
Semiconductor lighting (LED)
Silicon-based micro-display (Micro-LED)
Scientific research and development
